Plot the components of a slim scored allocation

Usage

plot_components_slim(
  slim_df,
  Ks = NULL,
  origin_time_col_name = NULL,
  model_col_name = NULL,
  target_col_name = NULL,
  show_oracle = TRUE,
  show_raw = TRUE,
  order_at_K = NULL,
  order_at_model = NULL,
  order_at_origin_time = NULL,
  pal_top = c("#CD3333", "#009ACD", "#FFB90F", "#8B3E2F", "#8B8B00"),
  bar_positioning = c("stack", "dodge")
)

Arguments

slim_df: a slim scored allocation; see slim().
Ks: budgets to plot. Defaults to NULL, which keeps all of them; note that the bar layout requires a single budget.
origin_time_col_name: name of the column holding an origin time, used to facet.
model_col_name: name of the column holding a model name. For hubverse model output this is "model_id".
target_col_name: name of the column holding target names.
show_oracle: whether to add the oracle's components as an extra model.
show_raw: plot the forecaster's own losses rather than its losses relative to the oracle.
order_at_K, order_at_model, order_at_origin_time: order the targets by their contribution at this budget, model or origin time. By default the targets are ordered over the whole data set.
pal_top: colours for the largest contributors when an ordering slice is given; the remaining targets are shown in grey.
bar_positioning: "stack" or "dodge", for the single-budget layout.

Value

A ggplot2::ggplot() object.

Examples

fc <- add_pdqr_funs(
  tibble::tibble(
    target_names = c("a", "b", "c"), dist = "norm",
    mean = c(5, 8, 12), sd = c(1, 2, 3)
  ),
  types = c("p", "q")
)
scored <- alloscore(fc, y = c(4, 9, 11), K = c(10, 20, 30))

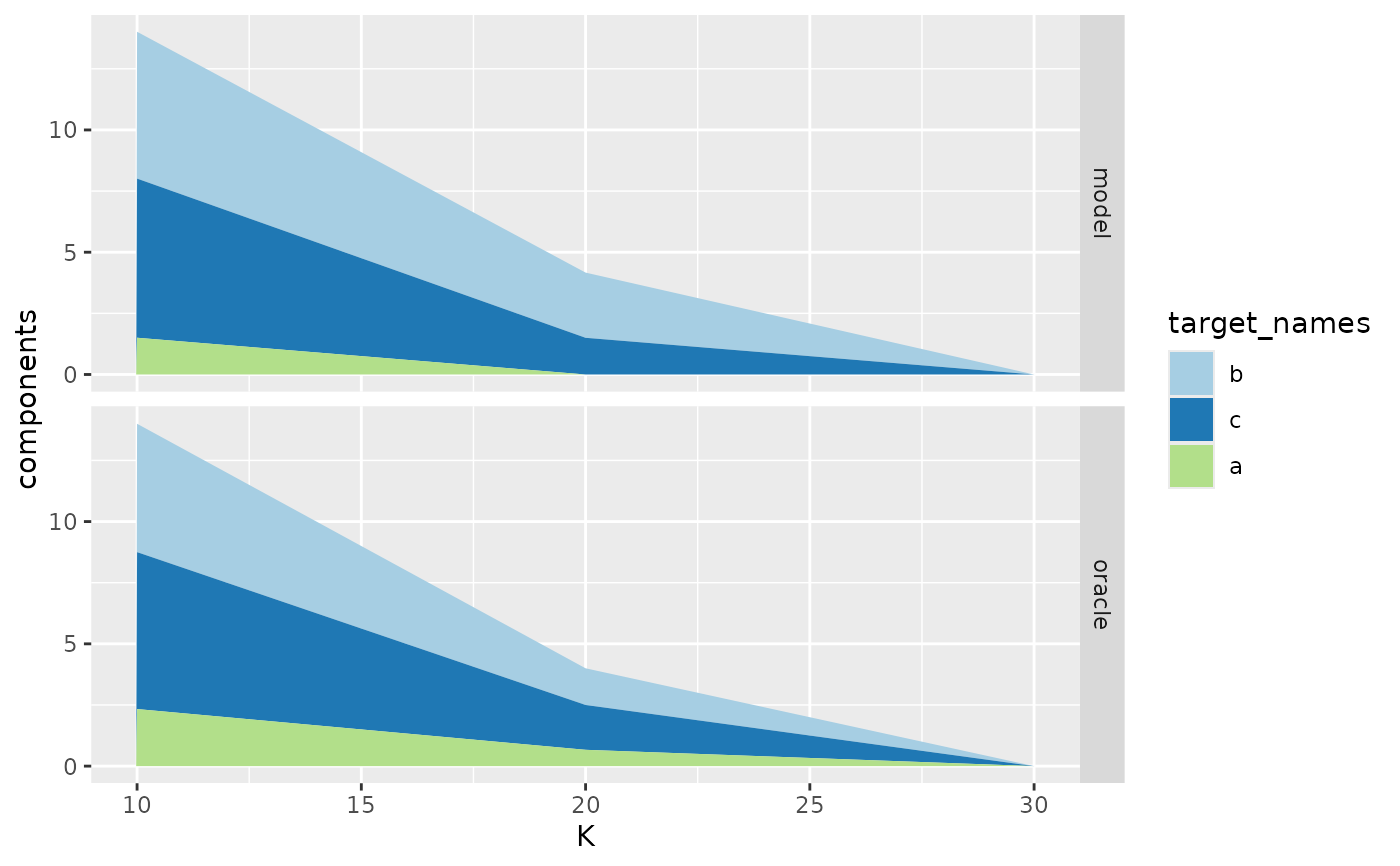

plot_components_slim(slim(scored))
